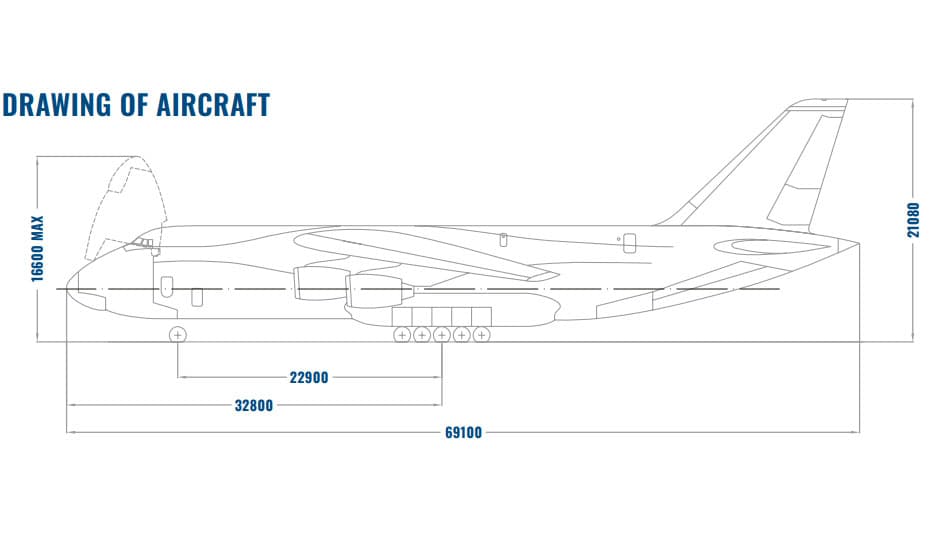

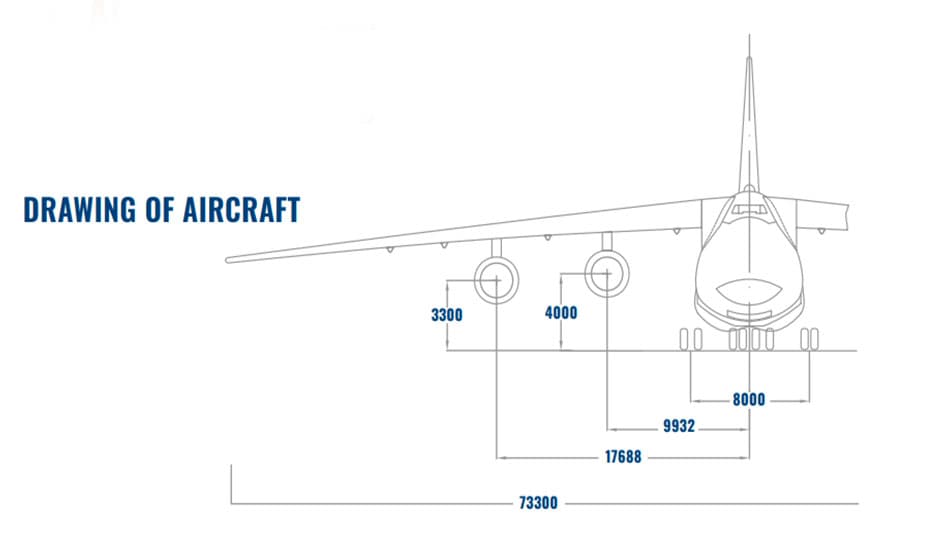

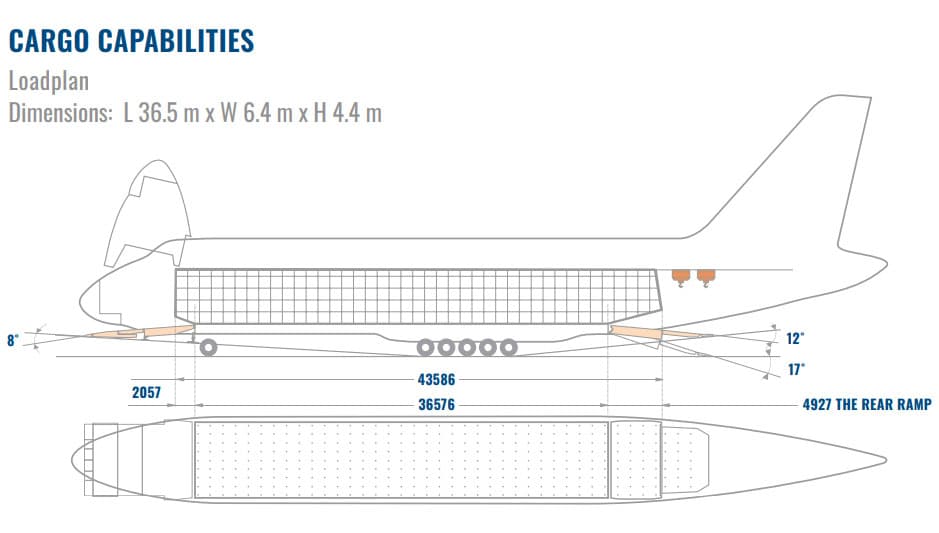

AN-124-100/150

The An-124-100 is the worlds largest, mass produced, civil cargo aircraft and is a recognized leader of the air cargo industry for its ability to transport oversized and super-heavy shipments.

The combination of exceptional characteristics such as its cargo compartment size, flight range and uplift capability (without the need for special loading equipment) allows the An-124 to carry super-heavy and oversized cargoes including equipment up to 120 tonnes (An-124-100) and up to 150 tonnes (An-124-150).

AN-124-100/150

AN-124-100/150

LOADING EQUIPMENT

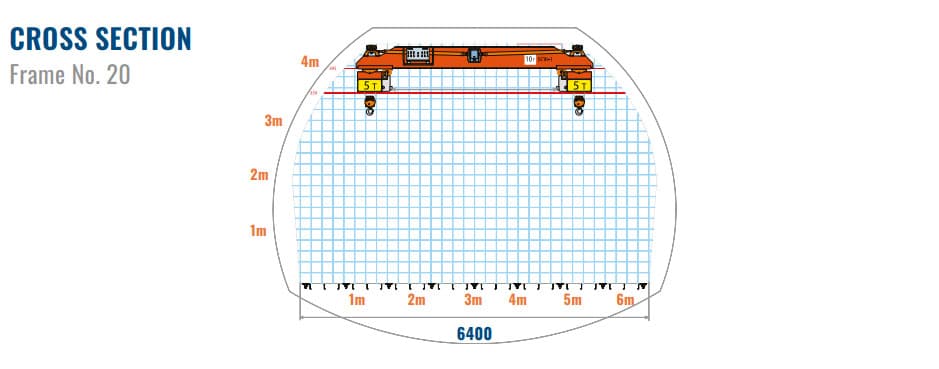

Internal Crane System consists of two gantries each with two lifting hooks. Capable of lifting single items of up to 20,000 kg. The containers must have suitable lifting points. The SPG system can be fitted to increase lifting capacity up to 30,000 kg but has further restrictions relating to the centre of gravity of the container and location of lifting points.

Double-deck loading and transport system designed and patented by Volga-Dnepr allows the An-124-100 to transport up to 35 cars (average sedan) on a single flight; loading does not require any additional equipment; alternatively, cars can be driven or winched through the nose

Bearings for elements of the front aircraft ramp or, to put it simply, under the front ramp of the An-124

Extension ramps of various types of cargo

Tracking systems (similar to railway tracks): 2 versions: low-profile and standard-profile

Skate beams and roller beams

Platforms of various design and load-carrying capacity

Protective weight-distributing plating

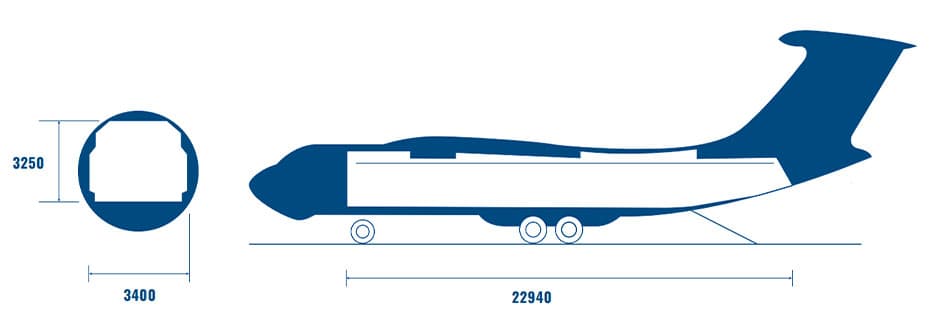

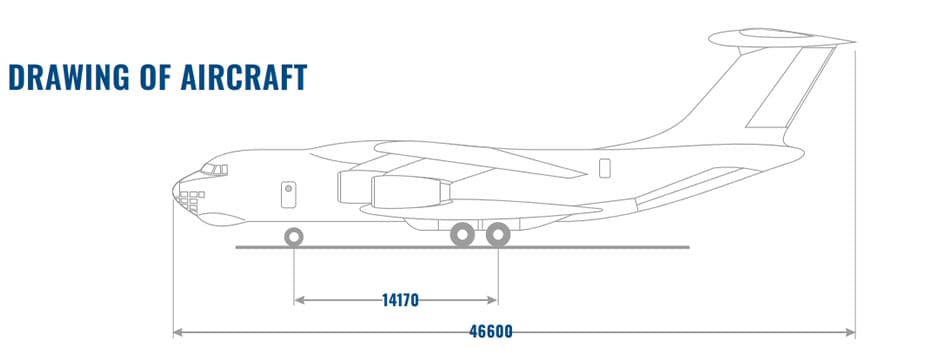

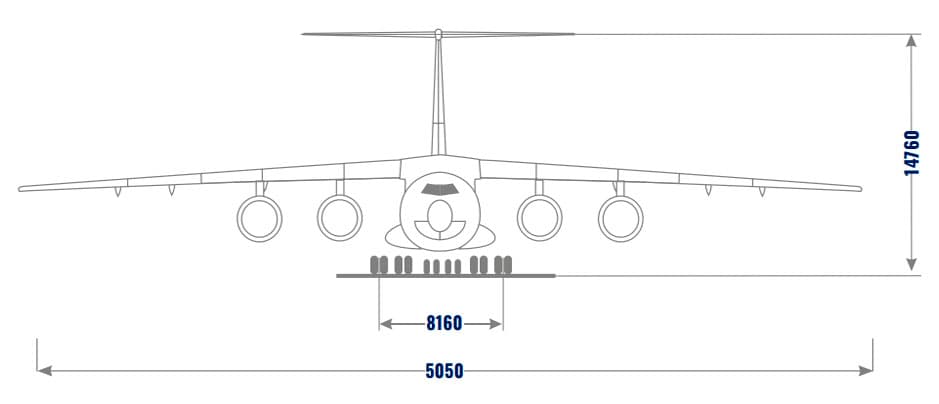

IL-76TD-90VD

Volga-Dnepr participated in the cross-section modernisation of the IL-76TD, one of Volga-Dnepr‘s most successful cargo aircraft thanks to its cabin size, carrying capacity and autonomous loading capabilities.

The resulting product is the IL-76TD-90VD, equipped with new PC-90A-76 engines and modern avionics, approved for worldwide operations.

IL-76TD-90VD

IL-76TD-90VD

LOADING EQUIPMENT

Internal Crane System - The onboard system of overhead cranes consists of 4 electric hoists with 3-tonne lifting capacity each, they are capa

The freighter is equipped with 2 onboard electric winches of 3-tonne hauling capacity each

Loading of wheeled vehicles, trailers and tracked vehicles

Ramp enables wheeled vehicles to be loaded using their own power

Ramp enables wheeled vehicles to be loaded using their own power

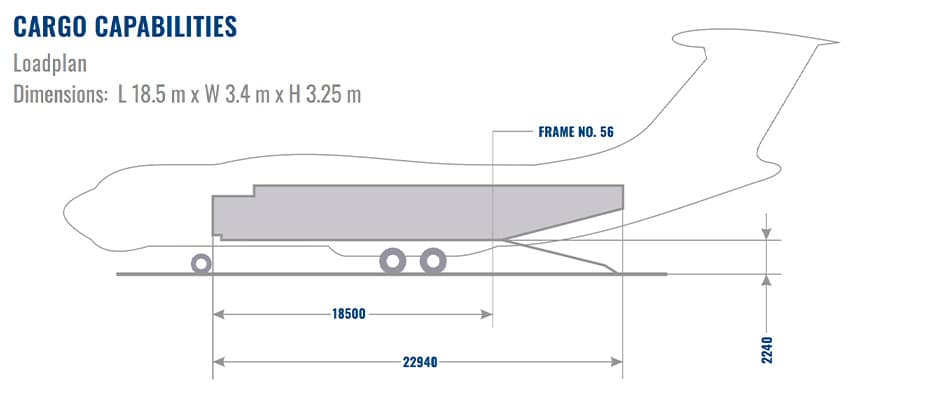

Loading of heavy and outsize cargo

Use of special Volga-Dnepr Airlines‘ loading equipment for loading of heavy and outsize cargo subject to usage of mob

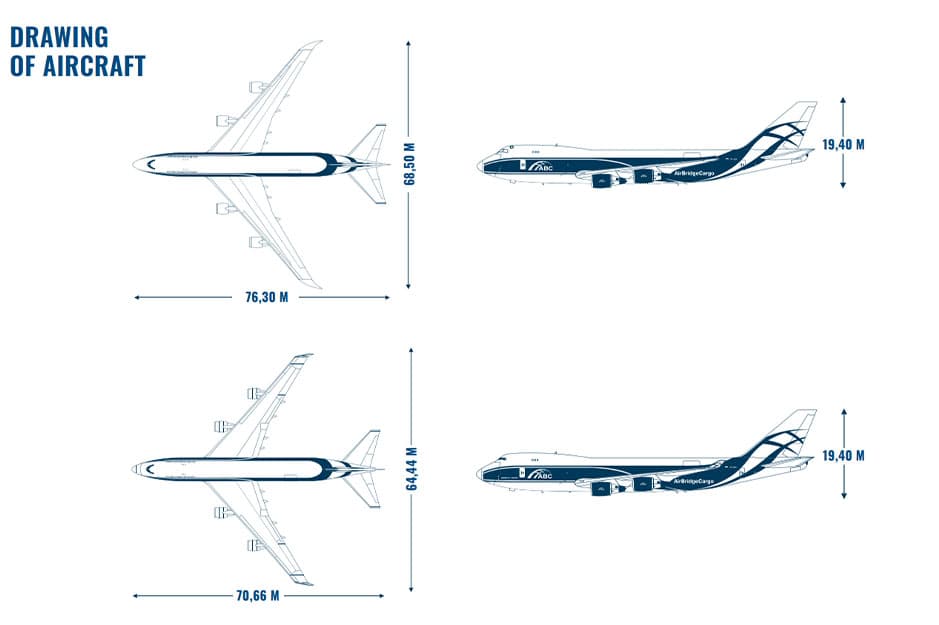

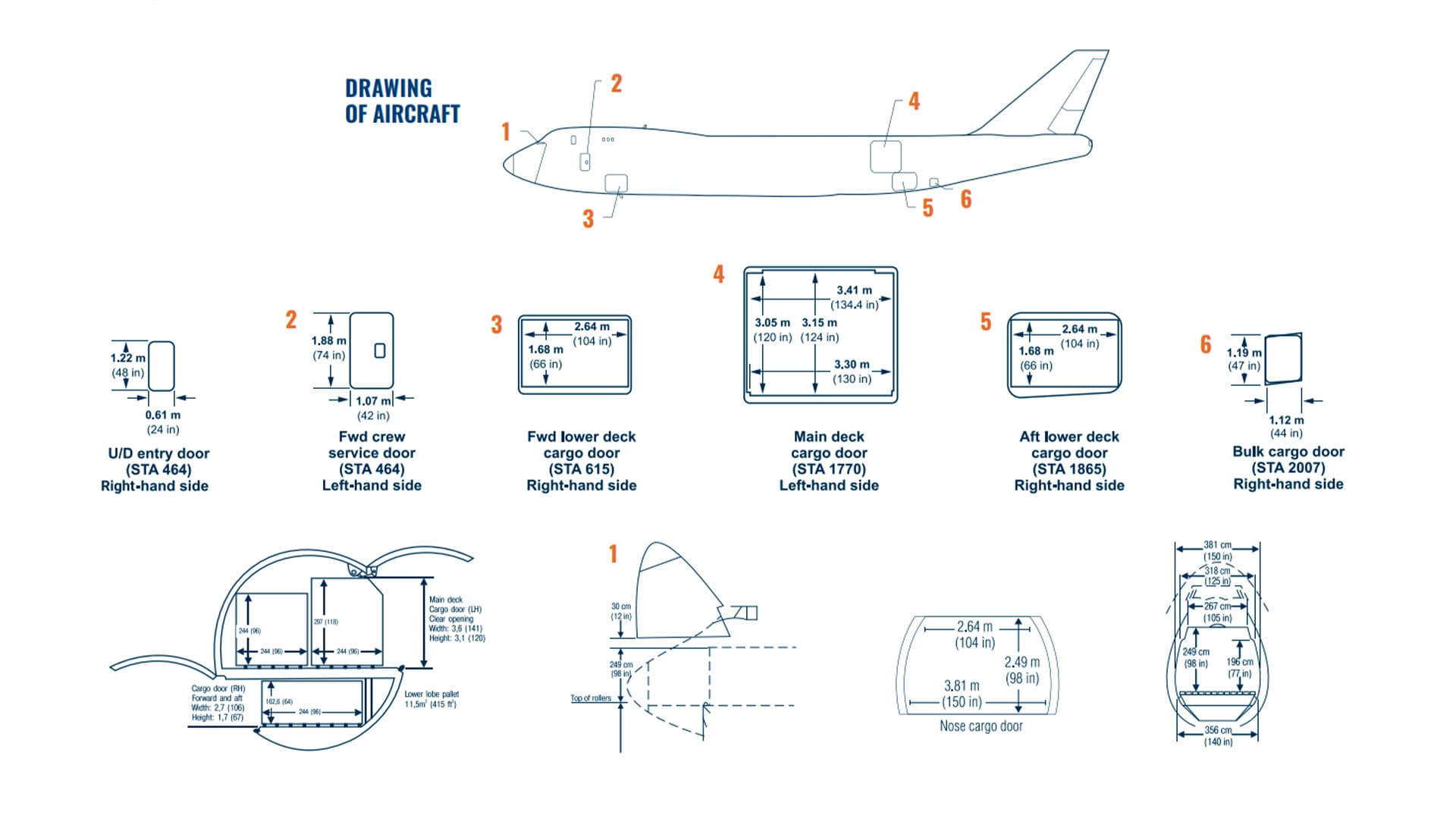

BOEING 747-8F/400ERF

The Boeing 747 is an all-cargo aircraft and is one of the most popular choices for cargo transportation. Its unique features such as the large side door and nose door facilitate the ease and flexibility of loading.

BOEING 747-8F/400ERF

BOEING 747-8F/400ERF

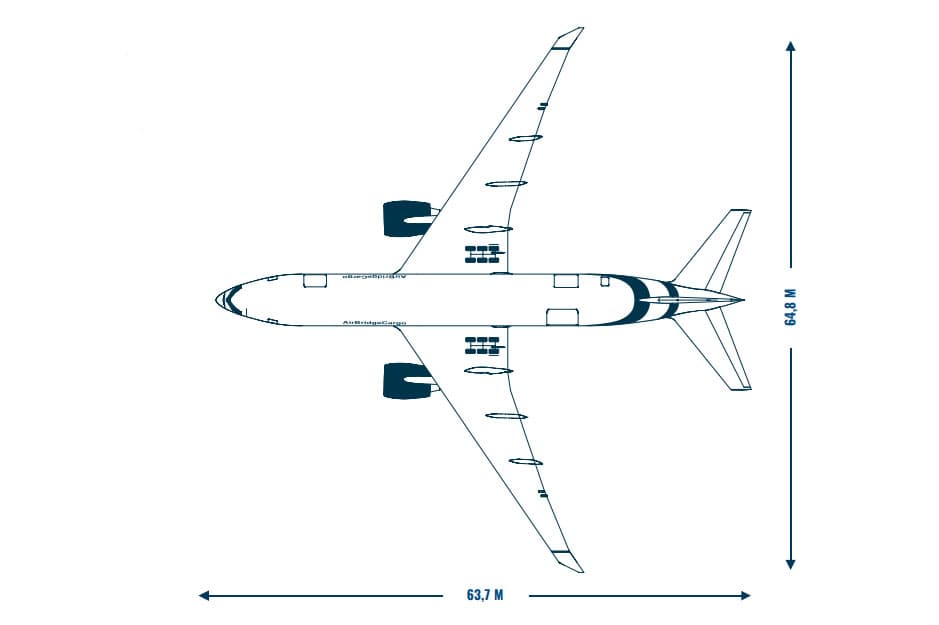

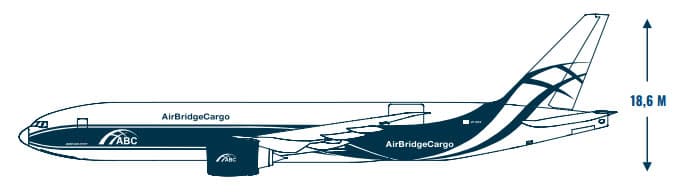

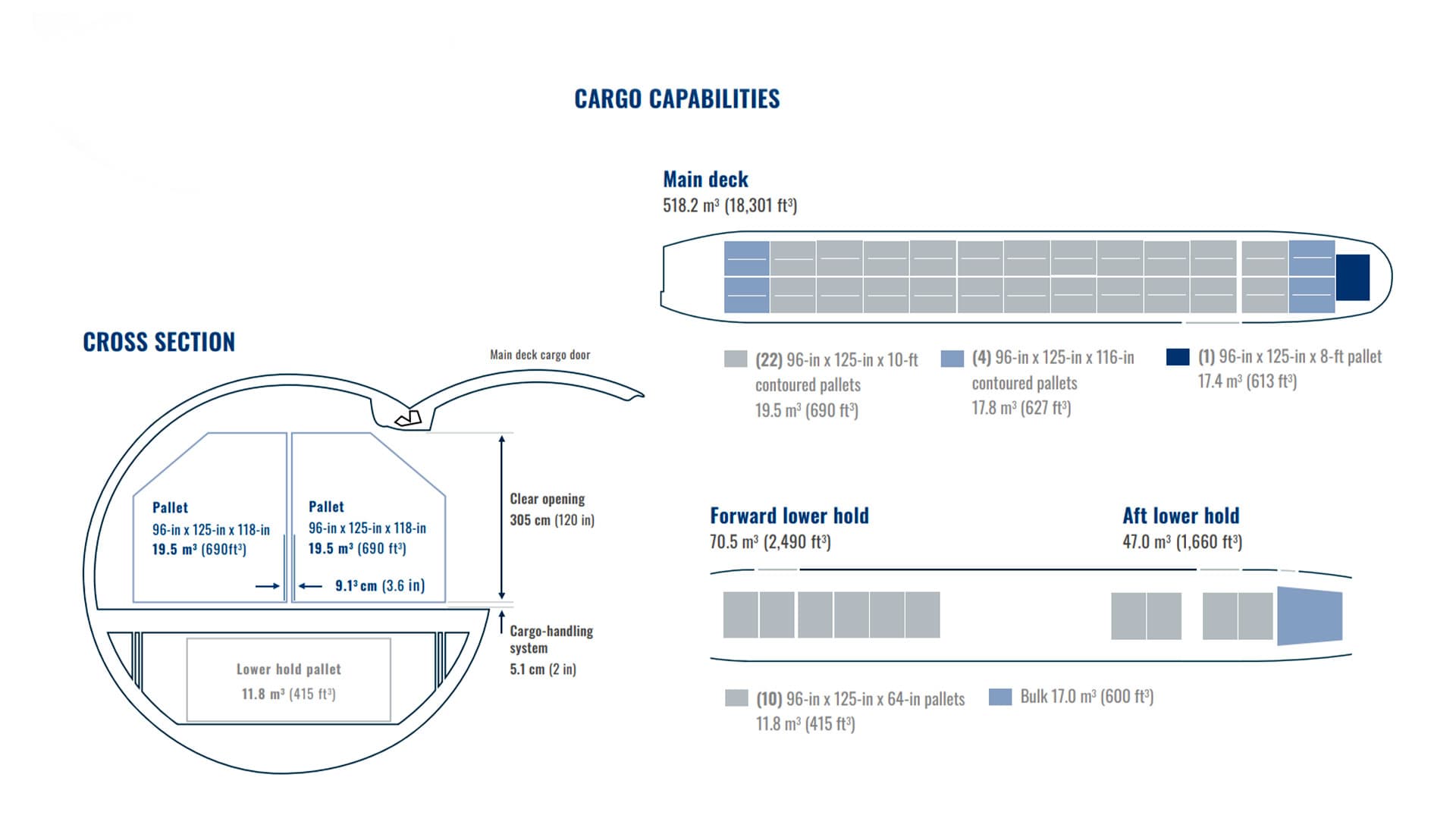

BOEING 777F

The Boeing 777 is the worlds largest, most capable twin-engine freighter and offers 102 tonnes of payload. This aircraft as an ideal complement to our B747F family allowing us to provide a more sustainable and efficient service. Advanced technology including a new composite wing, all-new engines and superior aerodynamics will result in enhanced benefits for our customers.

BOEING 777F

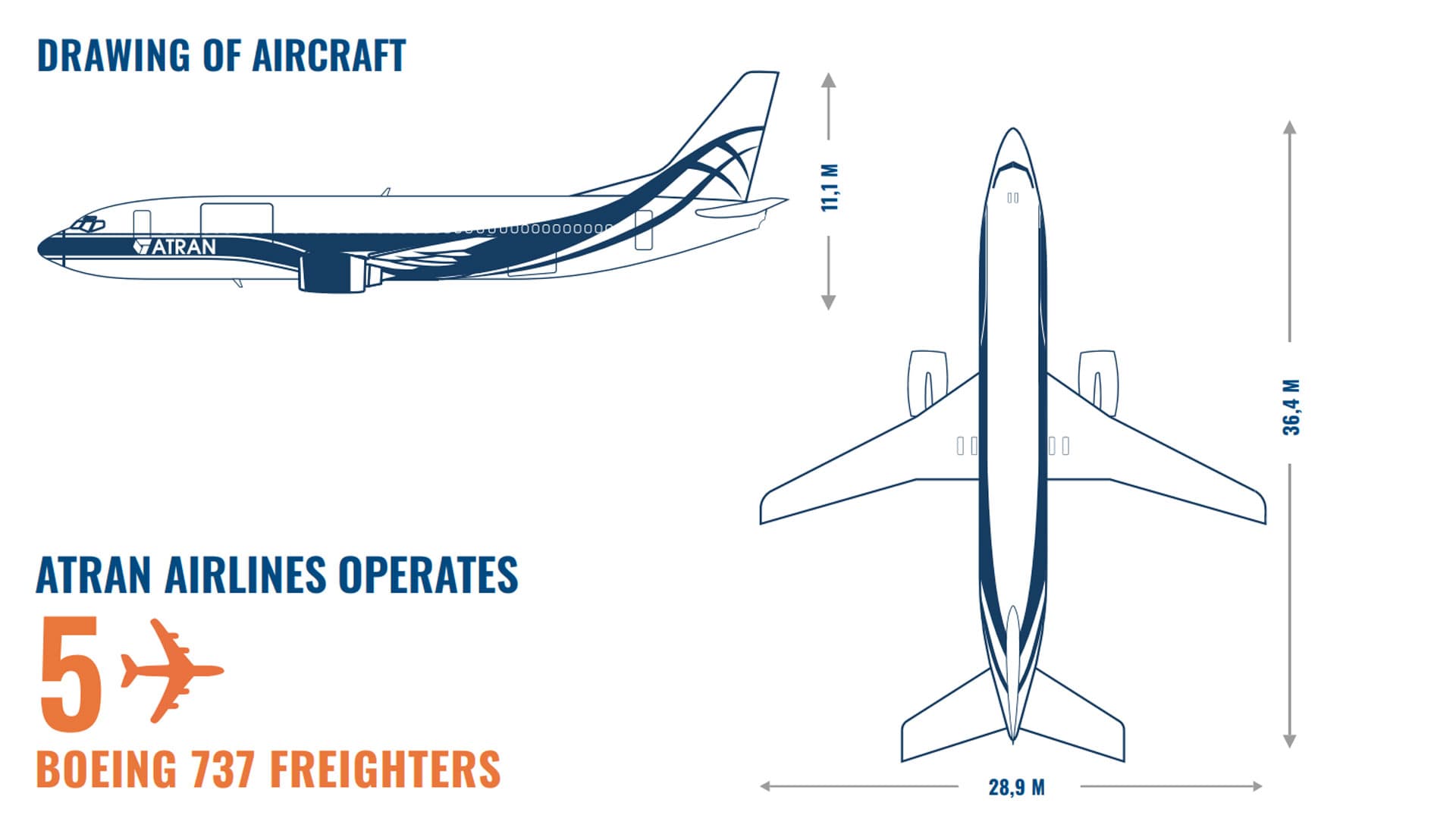

BOEING 737

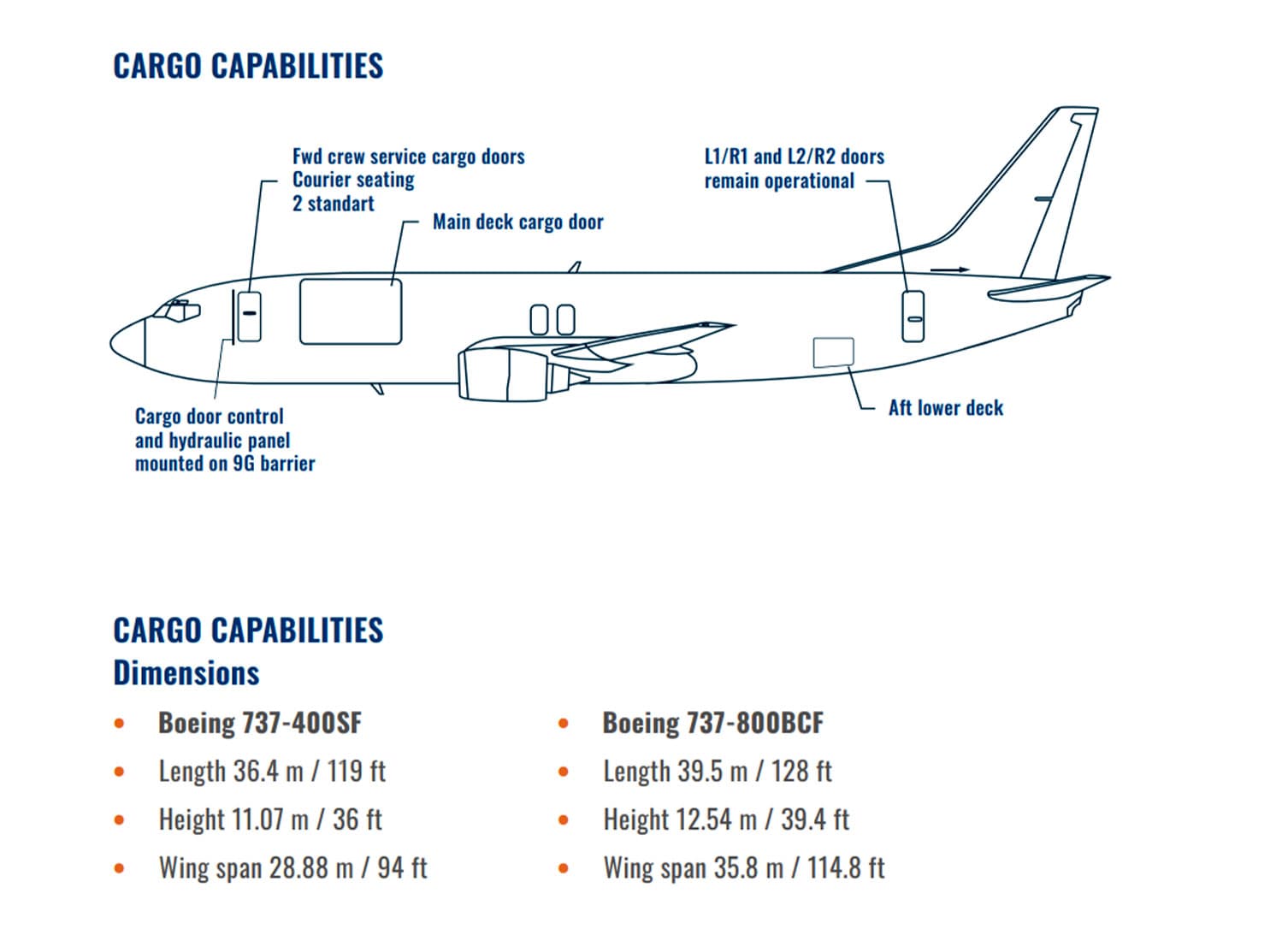

The Boeing 737-400SF/800BCF is a twin-engine medium-haul aircraft that is perfectly suited to short and mid-range routes.

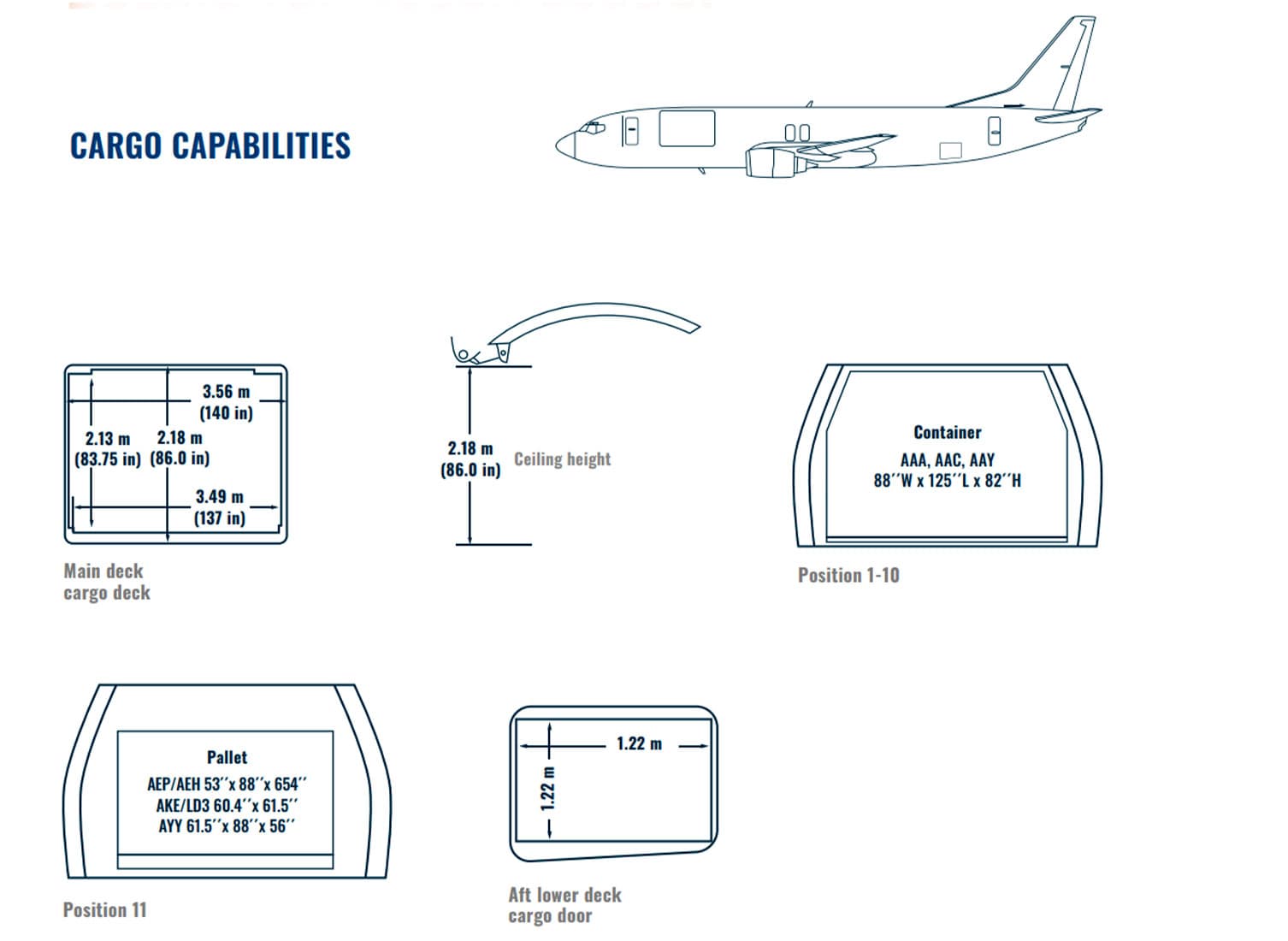

It is able to carry up to 20 tons and 130 m3 of cargo to a distance of 2,800 kilometers. The aircraft is equipped with a main deck side cargo door and a loading system enabling it to stow 10 standard 2235x3175 mm aviation pallets and containers in the cargo hold.

BOEING 737-400SF/800BCF

BOEING 737-400SF/800BCF
